Forma

Sku : FORMA-US

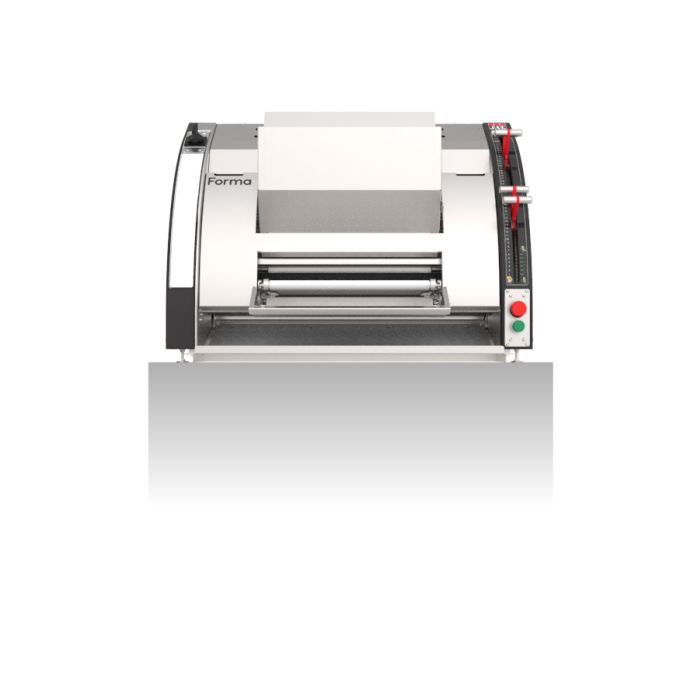

There is a wide range of JAC moulders and it enables everyone to find a moulder to suit their product range. The Forma is the vertical moulder equipped with an additional motorised outfeed which, thanks to an additional sheeting roller, enables pita or other types of flat bread to be produced. Equipped with three sheeting rollers and ergonomic controls, it will be capable of moulding up to 1,200 pieces an hour. Whether on a base, installed on a proofer or on your worktop, it is highly compact.

Configure your  Forma

Specifications

MIN/MAX WEIGHT OF DOUGH PIECES IN OUNCES

1.76 / 42.3 OZ

THREE FOOD-GRADE PETP ROLLERS

MAXIMUM SPEED IN PIECES PER HOUR

1200

MOTOR POWER IN KW



1.1

TYPE OF MOTOR

3PH/208V/60HZ/4.8A

BELT TYPE

SYNTHETIC

NET WEIGHT IN LBS

440



Main strengths

Rollers

Three food-grade polyethylene rollers

Adjustable rollers

The levers provide a high degree of accuracy and reduces the load on the wrist.

Forming belt

Ultra-quick belt change without disassembling the machine.

Flat breads

Opening the front door allows you to roll flat breads.

Vertical moulding

Vertical moulding to save space

ETL Listed US & Canada

If the ETL Listed mark has a "US" to the bottom right, it has passed U.S. product safety standards. If it has a "C" to the bottom left, it has passed Canadian product safety standards. If the ETL mark displays both identifiers, it meets both standards.

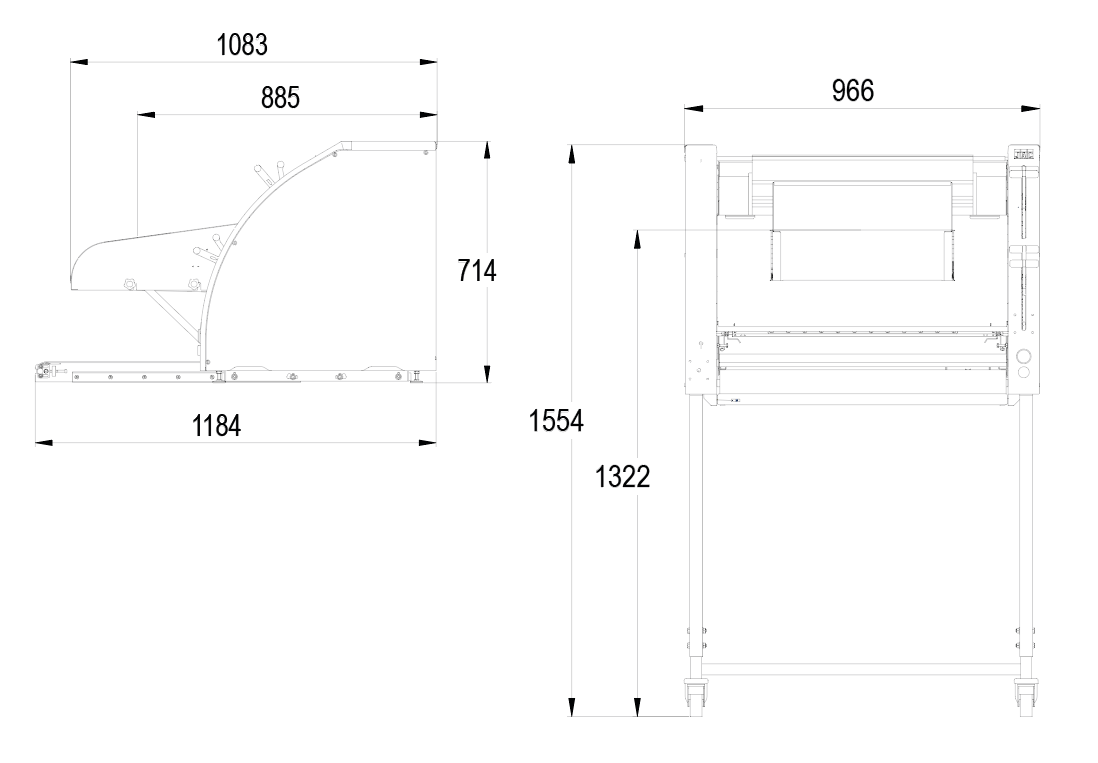

Technical drawing

Technical drawingForma
